Try the sample survey

Open the finished section

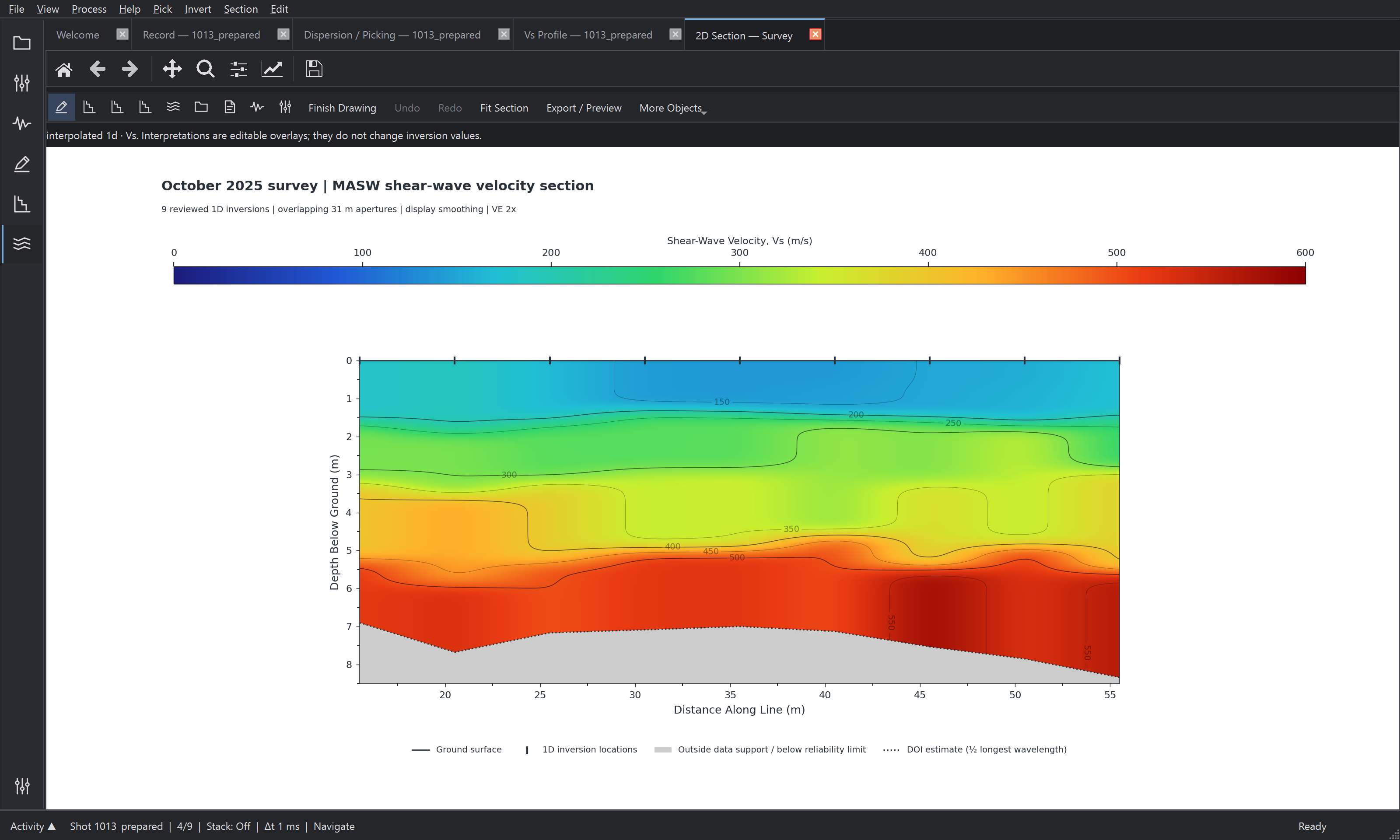

Extract the ZIP. In SeisSmith, select Section → Open Saved Section and open reviewed-field-section.sssection. This loads the nine reviewed profiles and their section immediately.

Explore a measured shot

Choose File → Open Shot Files and open raw/1010.dat. It is the unchanged 72-channel record: 1 m receiver spacing, 1 ms samples, and an 11 m source offset. Use receiver positions 0–71 m and source position −11 m. Set the displayed time window to 500 ms to inspect the arrivals.

Review the processing

The nine files in prepared-windows already contain the reviewed stacks, 8–80 Hz filtering, receiver selection, and late-time zeroing. Each retains 32 active receivers across 31 m. Their SEG-2 headers contain local source and receiver coordinates.

Open these files separately from the raw shot. Use a 500 ms analysis window, build dispersion images, and compare your picks with accepted-picks.csv. Use Manual Picking, then Finish Manual Picking. These files do not automatically load the supplied picks or inversions.

Inspect and export

The supplied layered-profiles.csv and profiles-and-processing.json retain the selected models, fits, and diagnostic flags. Reopen the saved section to adjust its scale and export a figure without repeating the inversion.
